Ceratizit
7.4009425E9

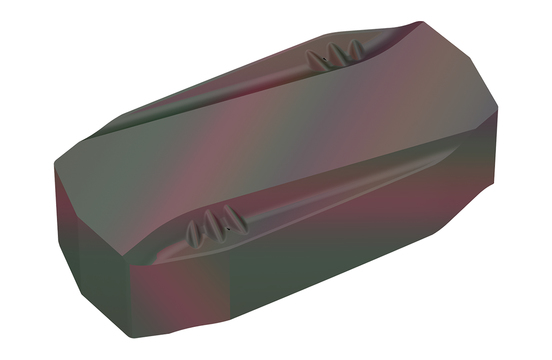

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 9.0 |
|---|---|
| Material | Carbide |
| Included Angle | 100 degrees |
| Style | YNUF |
| Thickness (Inch) | 0.36 |
| Short Description | YNUF 200920S50-M48 CTCP625 |
| Long Description | CARBIDE PEELING INSERT YNUF 200920S50-M48 CTCP625 |
| Grade | CTCP625 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.08 Inch |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.08 |
| Max. Depth Of Cut (Metric) | 2.0 |
| Width (Decimal) | 0.71 |
| Width (Metric) | 18.0 |
| Length (Decimal) | 1.46 |
| Length (Metric) | 37.0 |
| Chip Breaker | -M48 |
| Face Land Size Code | S50 |
| Cutting Edge Angle Major | 20 degrees |
| Index Count | 4.0 |
| Tolerance Class | U |
