Ceratizit
7.4006024E9

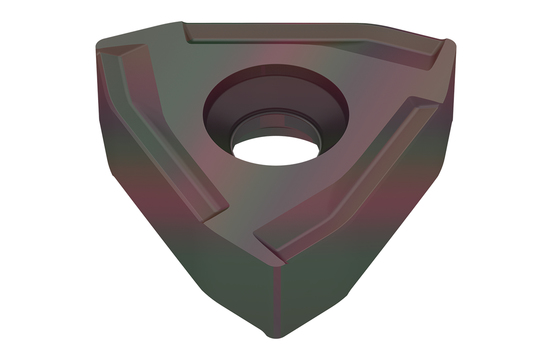

CARBIDE PEELING INSERT
Specifications
| Thickness (Metric) | 8.0 |
|---|---|
| Material | Carbide |
| Included Angle | 60 degrees |
| Style | NNUX |
| Thickness (Inch) | 0.32 |
| Short Description | NNUX 150820S50-M46 CTCP635 |
| Long Description | CARBIDE PEELING INSERT NNUX 150820S50-M46 CTCP635 |
| Grade | CTCP635 |
| Unit Of Measure | Imperial |
| Length of Cut | 0.08 Inch |
| Inscribed Circle Diameter | 0.87 Inch |
| Inscribed Circle Diameter (Metric) | 22.0 |
| Direction Of Hand | Left |
| Max. Depth Of Cut (Decimal) | 0.08 |
| Max. Depth Of Cut (Metric) | 2.0 |
| Chip Breaker | -M46 |
| Screw Hole Diameter (Decimal) | 0.28 |
| Screw Hole Diameter (Metric) | 7.0 |
| Face Land Size Code | S50 |
| Cutting Edge Angle Major | 20 degrees |
| Index Count | 6.0 |
| Tolerance Class | U |
