Ceratizit
7.145190301E9

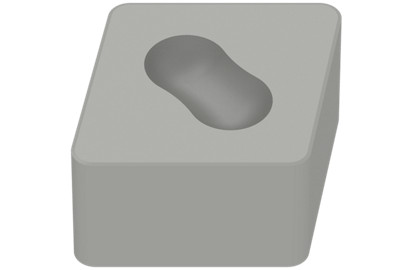

CERAMIC CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 7.94 |
|---|---|
| Corner Radius (Metric) | 1.6 |
| Material | Ceramic Carbide |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.07 |
| Style | CNGX |
| Thickness (Inch) | 0.32 |
| Short Description | CNGX 160716TN-020D CTN3105 |
| Long Description | CERAMIC CARBIDE TURNING INSERT CNGX 160716TN-020D CTN3105 |
| Grade | CTN3105 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.64 Inch |
| Inscribed Circle Diameter | 0.63 Inch |
| Inscribed Circle Diameter (Metric) | 15.87 |
| Cutting Edge Length (Metric) | 16.1 |
| Direction Of Hand | Neutral |
| Face Land Width (Metric) | 0.2 |
| Face Land Width (Decimal) | 0.01 |
| Tolerance Class | G |
