Ceratizit
7.14272E9

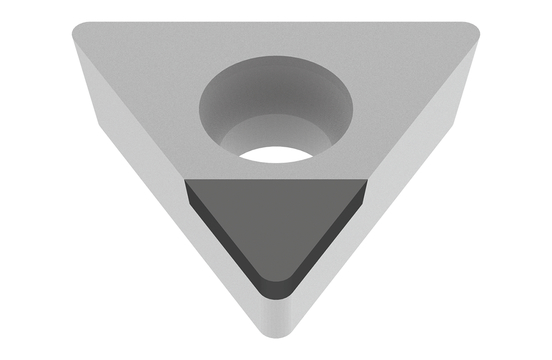

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCBN |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TCGW |
| Thickness (Inch) | 0.1 |
| Short Description | TCGW 090204TN-012C_A4 CTBS20U |
| Long Description | PCBN TURNING INSERT TCGW 090204TN-012C_A4 CTBS20U |
| Grade | CTBS20U |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.38 Inch |
| Inscribed Circle Diameter | 0.22 Inch |
| Inscribed Circle Diameter (Metric) | 5.56 |
| Cutting Edge Length (Metric) | 9.6 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.12 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.1 |
| Screw Hole Diameter (Metric) | 2.5 |
| Cutting Edge Effective Length (Metric) | 3.5 |
| Cutting Edge Effective Length (Decimal) | 0.14 |
| Index Count | 1.0 |
| Tolerance Class | G |
