Ceratizit
7.14251E9

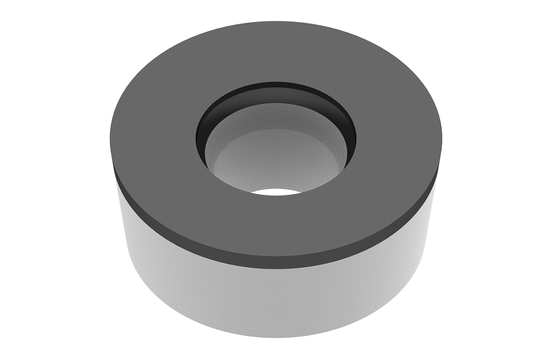

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 6.0 |
| Material | PCBN |
| Corner Radius (Inch) | 0.24 |
| Style | RCGW |
| Thickness (Inch) | 0.19 |
| Short Description | RCGW 1204M0TN-012D_F12 CTBS10U |
| Long Description | PCBN TURNING INSERT RCGW 1204M0TN-012D_F12 CTBS10U |
| Grade | CTBS10U |
| Unit Of Measure | Imperial |
| Inscribed Circle Diameter | 0.48 Inch |
| Inscribed Circle Diameter (Metric) | 12.0 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.12 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 12.0 |
| Cutting Edge Effective Length (Decimal) | 0.48 |
| Tolerance Class | G |
