Ceratizit
7.1423401E9

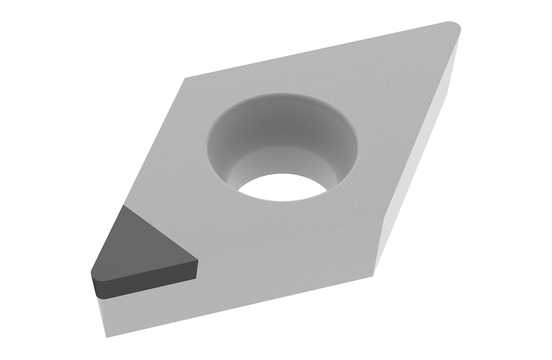

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.1 |
| Material | PCBN |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DCGW |
| Thickness (Inch) | 0.1 |
| Short Description | DCGW 070201FR_A3-Q CTBH21U |
| Long Description | PCBN TURNING INSERT DCGW 070201FR_A3-Q CTBH21U |
| Grade | CTBH21U |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.31 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 7.75 |
| Direction Of Hand | Right |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -Q |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 3.0 |
| Cutting Edge Effective Length (Decimal) | 0.12 |
| Index Count | 1.0 |
| Tolerance Class | G |
