Ceratizit
7.1406106E9

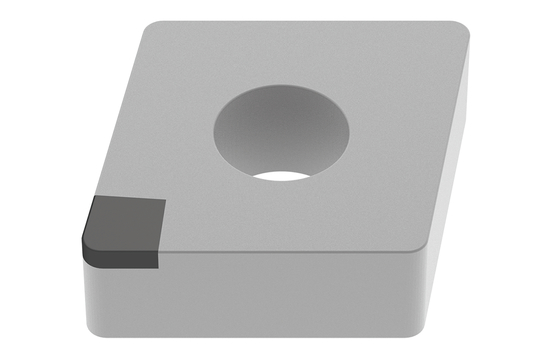

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | PCBN |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNGA |
| Thickness (Inch) | 0.19 |
| Short Description | CNGA 120412FN_A3 CTBS10U |
| Long Description | PCBN TURNING INSERT CNGA 120412FN_A3 CTBS10U |
| Grade | CTBS10U |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.51 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 12.9 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.13 |
| Cutting Edge Effective Length (Metric) | 2.5 |
| Cutting Edge Effective Length (Decimal) | 0.1 |
| Index Count | 1.0 |
| Tolerance Class | G |
