Ceratizit
7.1404272E9

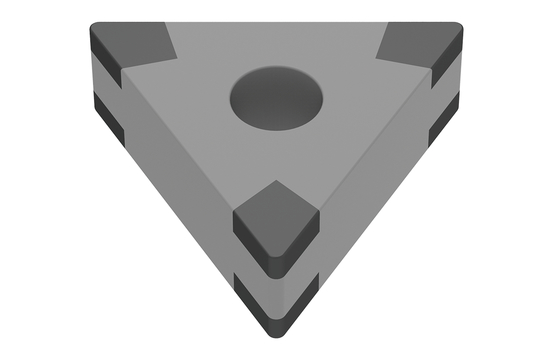

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCBN |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | TNGA |
| Thickness (Inch) | 0.19 |
| Short Description | TNGA 160408SN-014F_M3 CTBH20C |
| Long Description | PCBN TURNING INSERT TNGA 160408SN-014F_M3 CTBH20C |
| Grade | CTBH20C |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.65 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.5 |
| Direction Of Hand | Neutral |
| Face Land Width (Metric) | 0.14 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Cutting Edge Effective Length (Metric) | 2.5 |
| Cutting Edge Effective Length (Decimal) | 0.1 |
| Index Count | 6.0 |
| Tolerance Class | G |
