Ceratizit
7.1404226E7

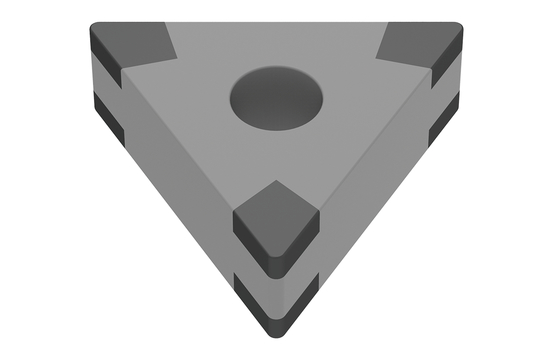

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | PCBN |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | TNGA |
| Thickness (Inch) | 0.19 |
| Short Description | TNGA 160412TN-009C_M2 CTBH20C |
| Long Description | PCBN TURNING INSERT TNGA 160412TN-009C_M2 CTBH20C |
| Grade | CTBH20C |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16.50 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.65 |
| Direction Of Hand | Neutral |
| Face Land Width (Metric) | 0.09 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.15 |
| Screw Hole Diameter (Metric) | 3.81 |
| Cutting Edge Effective Length (Metric) | 2.2 |
| Cutting Edge Effective Length (Decimal) | 0.09 |
| Index Count | 6.0 |
| Tolerance Class | G |
