Ceratizit
7.1403306E9

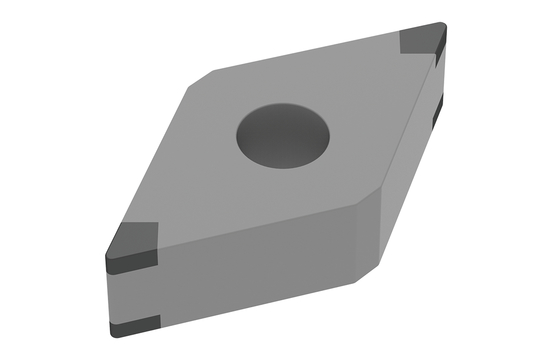

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCBN |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DNGA |
| Thickness (Inch) | 0.19 |
| Short Description | DNGA 150408SN-011E_L3 CTBH40C |
| Long Description | PCBN TURNING INSERT DNGA 150408SN-011E_L3 CTBH40C |
| Grade | CTBH40C |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.61 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 15.5 |
| Direction Of Hand | Neutral |
| Face Land Width (Metric) | 0.11 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Cutting Edge Effective Length (Metric) | 2.6 |
| Cutting Edge Effective Length (Decimal) | 0.11 |
| Index Count | 4.0 |
| Tolerance Class | G |
