Ceratizit
7.1327238E7

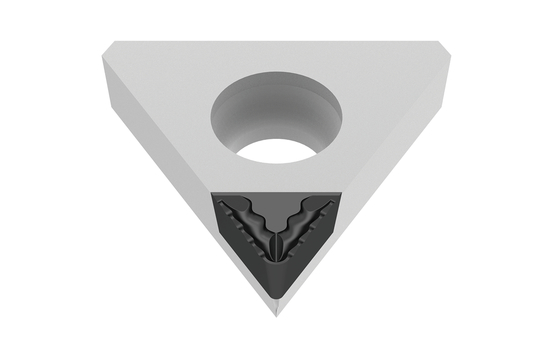

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCD |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | TCGT |
| Thickness (Inch) | 0.16 |
| Short Description | TCGT 16T308FN_A4-CB3 CTDPU20 |
| Long Description | PCD TURNING INSERT TCGT 16T308FN_A4-CB3 CTDPU20 |
| Grade | CTDPU20 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16.50 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.65 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -CB3 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 4.2 |
| Cutting Edge Effective Length (Decimal) | 0.17 |
| Index Count | 1.0 |
| Tolerance Class | G |
