Ceratizit
7.1325122E7

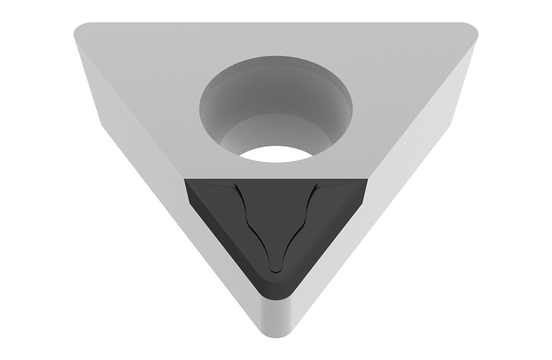

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | PCD |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | TCGT |
| Thickness (Inch) | 0.1 |
| Short Description | TCGT 110202FN_A4-CB1 CTDPD20 |
| Long Description | PCD TURNING INSERT TCGT 110202FN_A4-CB1 CTDPD20 |
| Grade | CTDPD20 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.44 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -CB1 |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 3.7 |
| Cutting Edge Effective Length (Decimal) | 0.15 |
| Index Count | 1.0 |
| Tolerance Class | G |
