Ceratizit
7.1306224E7

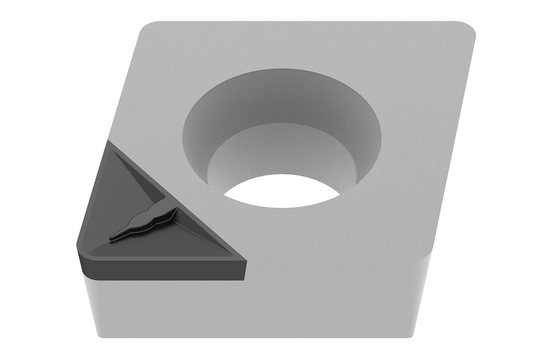

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCD |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCGT |
| Thickness (Inch) | 0.19 |
| Short Description | CCGT 120404FN_A4-Q-CB2 CTDPS30 |
| Long Description | PCD TURNING INSERT CCGT 120404FN_A4-Q-CB2 CTDPS30 |
| Grade | CTDPS30 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.90 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.51 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -Q-CB2 |
| Screw Hole Diameter (Decimal) | 0.22 |
| Screw Hole Diameter (Metric) | 5.5 |
| Cutting Edge Effective Length (Metric) | 4.2 |
| Cutting Edge Effective Length (Decimal) | 0.17 |
| Index Count | 1.0 |
| Tolerance Class | G |
