Ceratizit
7.118950601E9

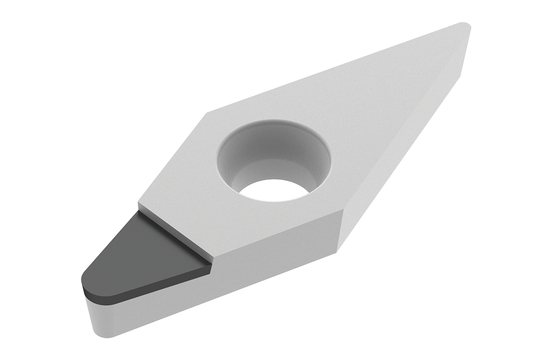

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCD |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | VCGT |
| Thickness (Inch) | 0.19 |
| Short Description | VCGT 160408FN_A2 CTDMD05 |
| Long Description | PCD TURNING INSERT VCGT 160408FN_A2 CTDMD05 |
| Grade | CTDMD05 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.66 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.6 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Index Count | 1.0 |
| Tolerance Class | G |
