Ceratizit
7.118920101E9

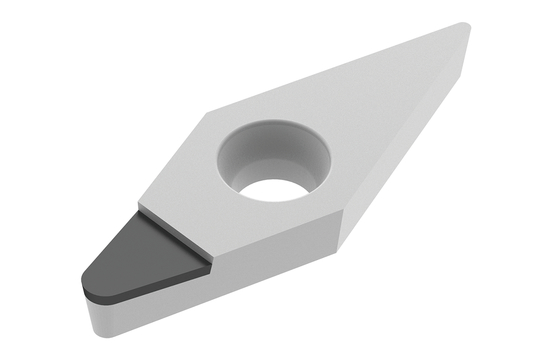

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 0.1 |
| Material | PCD |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | VCGT |
| Thickness (Inch) | 0.13 |
| Short Description | VCGT 110301FN_A5 CTDPS30 |
| Long Description | PCD TURNING INSERT VCGT 110301FN_A5 CTDPS30 |
| Grade | CTDPS30 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.44 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 11.1 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.12 |
| Screw Hole Diameter (Metric) | 2.9 |
| Cutting Edge Effective Length (Metric) | 5.4 |
| Cutting Edge Effective Length (Decimal) | 0.22 |
| Index Count | 1.0 |
| Tolerance Class | G |
