Ceratizit
7.118120201E9

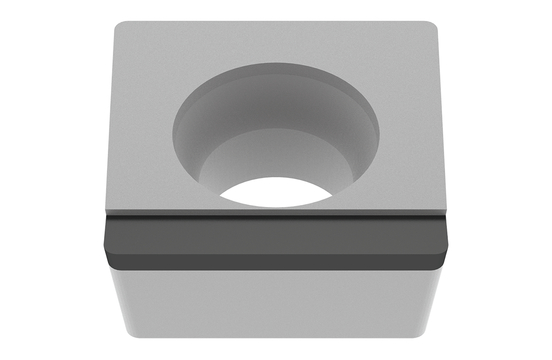

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | PCD |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | SCGT |
| Thickness (Inch) | 0.19 |
| Short Description | SCGT 120412FNN_A13 CTDPS30 |
| Long Description | PCD TURNING INSERT SCGT 120412FNN_A13 CTDPS30 |
| Grade | CTDPS30 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.50 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 12.7 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.22 |
| Screw Hole Diameter (Metric) | 5.5 |
| Cutting Edge Effective Length (Metric) | 12.0 |
| Cutting Edge Effective Length (Decimal) | 0.48 |
| Index Count | 1.0 |
| Tolerance Class | G |
