Ceratizit
7.117910201E9

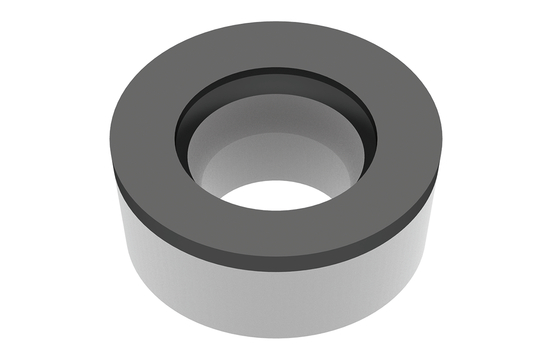

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 6.0 |
| Material | PCD |
| Corner Radius (Inch) | 0.24 |
| Style | RCGW |
| Thickness (Inch) | 0.13 |
| Short Description | RCGW 1003M0FN_F10 CTDPD20 |
| Long Description | PCD TURNING INSERT RCGW 1003M0FN_F10 CTDPD20 |
| Grade | CTDPD20 |
| Unit Of Measure | Imperial |
| Inscribed Circle Diameter | 0.40 Inch |
| Inscribed Circle Diameter (Metric) | 10.0 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 10.0 |
| Cutting Edge Effective Length (Decimal) | 0.4 |
| Tolerance Class | G |
