Ceratizit
7.117320801E9

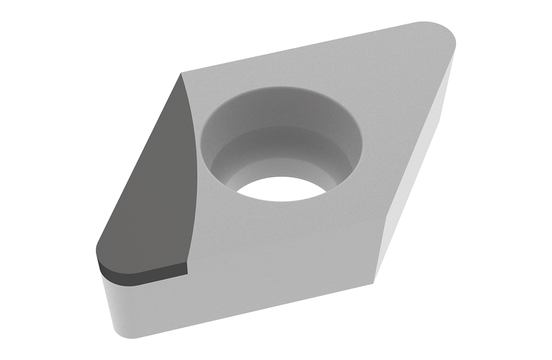

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 1.2 |
| Material | PCD |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | DCGT |
| Thickness (Inch) | 0.16 |
| Short Description | DCGT 11T312FL_A6 CTDPS30 |
| Long Description | PCD TURNING INSERT DCGT 11T312FL_A6 CTDPS30 |
| Grade | CTDPS30 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.46 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 11.6 |
| Direction Of Hand | Left |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 6.5 |
| Cutting Edge Effective Length (Decimal) | 0.26 |
| Index Count | 1.0 |
| Tolerance Class | G |
