Ceratizit
7.117210101E9

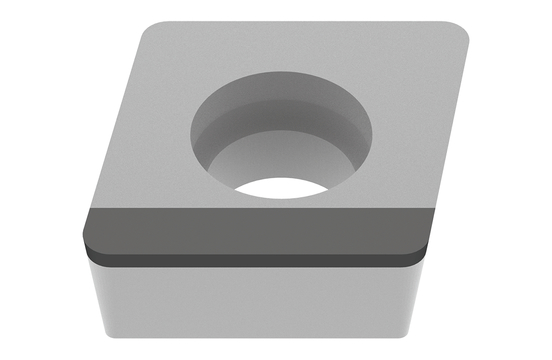

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCD |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCGW |
| Thickness (Inch) | 0.1 |
| Short Description | CCGW 060204FRR_A6 CTDPD20 |
| Long Description | PCD TURNING INSERT CCGW 060204FRR_A6 CTDPD20 |
| Grade | CTDPD20 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.26 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 6.4 |
| Direction Of Hand | Right |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 6.45 |
| Cutting Edge Effective Length (Decimal) | 0.26 |
| Index Count | 1.0 |
| Tolerance Class | G |
