Ceratizit
7.1163145E7

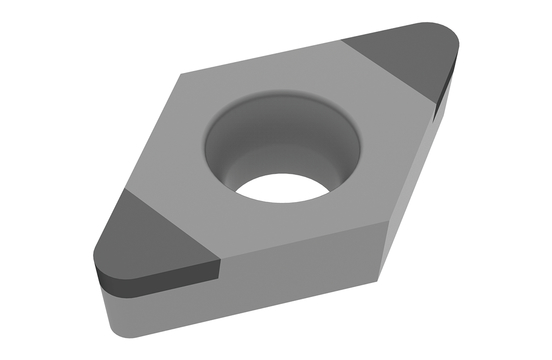

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCBN |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DCGW |
| Thickness (Inch) | 0.16 |
| Short Description | DCGW 11T308TN-015D_B3 CTBS20C |
| Long Description | PCBN TURNING INSERT DCGW 11T308TN-015D_B3 CTBS20C |
| Grade | CTBS20C |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.46 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.15 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 3.0 |
| Cutting Edge Effective Length (Decimal) | 0.12 |
| Index Count | 2.0 |
| Tolerance Class | G |
