Ceratizit
7.1162345E7

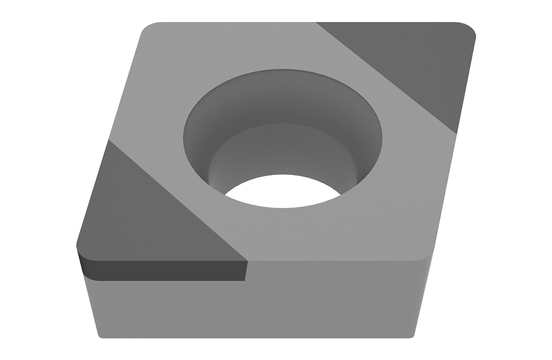

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCBN |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | CCGW |
| Thickness (Inch) | 0.16 |
| Short Description | CCGW 09T308TN-011E_B3-Q CTBH40C |
| Long Description | PCBN TURNING INSERT CCGW 09T308TN-011E_B3-Q CTBH40C |
| Grade | CTBH40C |
| Unit Of Measure | Metric |
| Cutting Edge Length | 9.70 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.39 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.11 |
| Face Land Width (Decimal) | 0.01 |
| Chip Breaker | -Q |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 2.8 |
| Cutting Edge Effective Length (Decimal) | 0.11 |
| Index Count | 2.0 |
| Tolerance Class | G |
