Ceratizit
7.116221E7

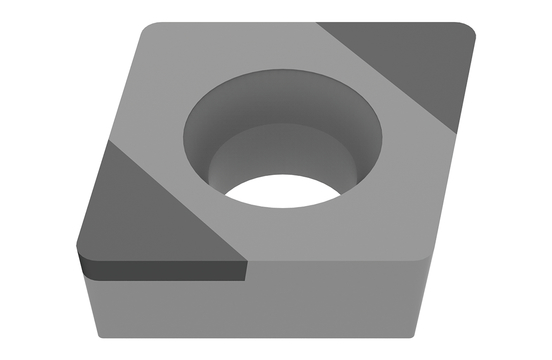

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | PCBN |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | CCGW |
| Thickness (Inch) | 0.1 |
| Short Description | CCGW 060202FN_B3-Q CTBH20C |
| Long Description | PCBN TURNING INSERT CCGW 060202FN_B3-Q CTBH20C |
| Grade | CTBH20C |
| Unit Of Measure | Metric |
| Cutting Edge Length | 6.40 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.26 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -Q |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 3.4 |
| Cutting Edge Effective Length (Decimal) | 0.14 |
| Index Count | 2.0 |
| Tolerance Class | G |
