Ceratizit
7.114021E7

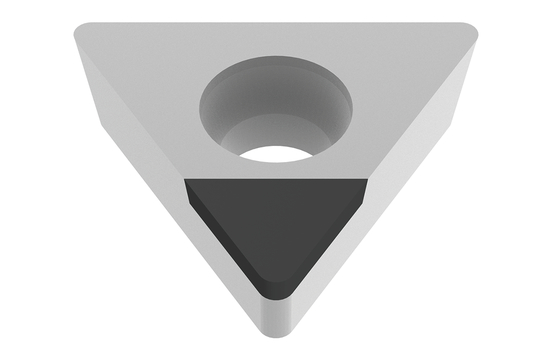

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCBN |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | TCGW |
| Thickness (Inch) | 0.1 |
| Short Description | TCGW 110208FN_A3 CTBS10U |
| Long Description | PCBN TURNING INSERT TCGW 110208FN_A3 CTBS10U |
| Grade | CTBS10U |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.44 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 3.0 |
| Cutting Edge Effective Length (Decimal) | 0.12 |
| Index Count | 1.0 |
| Tolerance Class | M |
