Ceratizit
7.113511E7

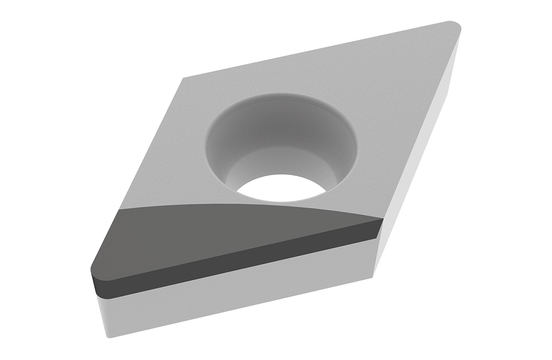

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCD |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DCGT |
| Thickness (Inch) | 0.16 |
| Short Description | DCGT 11T308FR_A7 CTDPD20 |
| Long Description | PCD TURNING INSERT DCGT 11T308FR_A7 CTDPD20 |
| Grade | CTDPD20 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.60 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Cutting Edge Length (Decimal) | 0.46 |
| Direction Of Hand | Right |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 7.0 |
| Cutting Edge Effective Length (Decimal) | 0.28 |
| Index Count | 1.0 |
| Tolerance Class | M |
