Ceratizit
7.11342E7

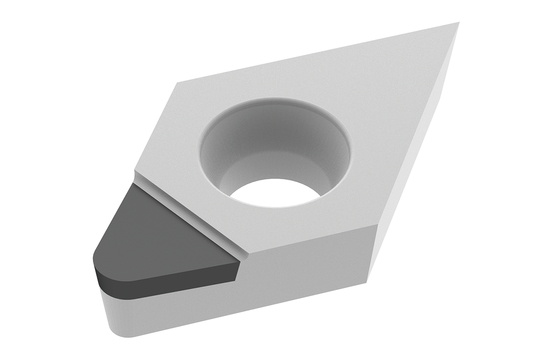

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Material | PCBN |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DCGT |
| Thickness (Inch) | 0.1 |
| Short Description | DCGT 070202FN_A4 CTBS10U |
| Long Description | PCBN TURNING INSERT DCGT 070202FN_A4 CTBS10U |
| Grade | CTBS10U |
| Unit Of Measure | Metric |
| Cutting Edge Length | 7.75 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.31 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 3.9 |
| Cutting Edge Effective Length (Decimal) | 0.16 |
| Index Count | 1.0 |
| Tolerance Class | M |
