Ceratizit
7.112810401E9

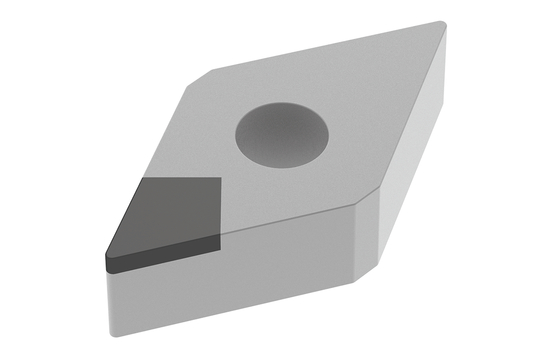

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 6.35 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCD |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DNGA |
| Thickness (Inch) | 0.25 |
| Short Description | DNGA 150608FN_A6 CTDPD20 |
| Long Description | PCD TURNING INSERT DNGA 150608FN_A6 CTDPD20 |
| Grade | CTDPD20 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.61 Inch |
| Inscribed Circle Diameter | 0.50 Inch |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Cutting Edge Length (Metric) | 15.5 |
| Direction Of Hand | Neutral |
| Screw Hole Diameter (Decimal) | 0.21 |
| Screw Hole Diameter (Metric) | 5.16 |
| Cutting Edge Effective Length (Metric) | 6.0 |
| Cutting Edge Effective Length (Decimal) | 0.24 |
| Index Count | 1.0 |
| Tolerance Class | G |
