Ceratizit
7.1120508E7

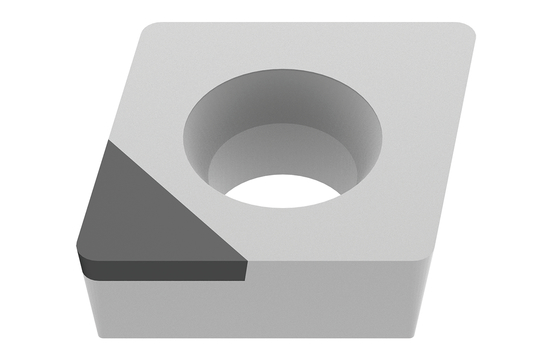

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCBN |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCGW |
| Thickness (Inch) | 0.19 |
| Short Description | CCGW 120404TN-012D_A3 CTBH20U |
| Long Description | PCBN TURNING INSERT CCGW 120404TN-012D_A3 CTBH20U |
| Grade | CTBH20U |
| Unit Of Measure | Metric |
| Cutting Edge Length | 12.90 mm |
| Inscribed Circle Diameter | 12.70 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Cutting Edge Length (Decimal) | 0.51 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.12 |
| Face Land Width (Decimal) | 0.01 |
| Screw Hole Diameter (Decimal) | 0.22 |
| Screw Hole Diameter (Metric) | 5.5 |
| Cutting Edge Effective Length (Metric) | 3.1 |
| Cutting Edge Effective Length (Decimal) | 0.13 |
| Index Count | 1.0 |
| Tolerance Class | G |
