Ceratizit
7.1064104E7

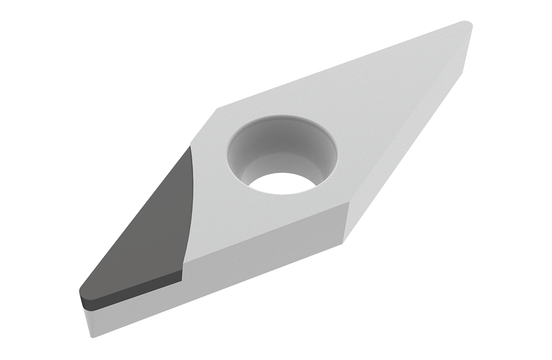

PCD TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | PCD |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | VCGT |
| Thickness (Inch) | 0.13 |
| Short Description | VCGT 110308FL_A6 CTDPD20 |
| Long Description | PCD TURNING INSERT VCGT 110308FL_A6 CTDPD20 |
| Grade | CTDPD20 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.10 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Cutting Edge Length (Decimal) | 0.44 |
| Direction Of Hand | Left |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.12 |
| Screw Hole Diameter (Metric) | 2.9 |
| Cutting Edge Effective Length (Metric) | 6.0 |
| Cutting Edge Effective Length (Decimal) | 0.24 |
| Index Count | 1.0 |
| Tolerance Class | M |
