Ceratizit
7.1035238E9

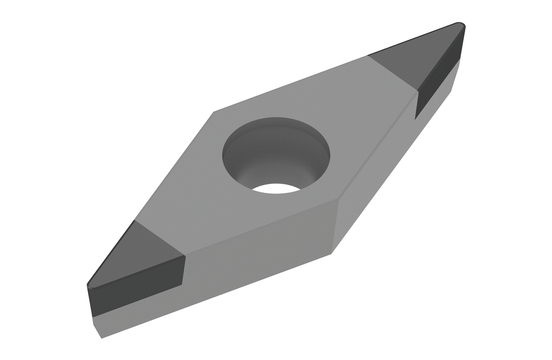

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCBN |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VCGW |
| Thickness (Inch) | 0.19 |
| Short Description | VCGW 160404RN_B3 CTBH15C |
| Long Description | PCBN TURNING INSERT VCGW 160404RN_B3 CTBH15C |
| Grade | CTBH15C |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.66 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 16.6 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Cutting Edge Effective Length (Metric) | 3.1 |
| Cutting Edge Effective Length (Decimal) | 0.13 |
| Index Count | 2.0 |
| Tolerance Class | G |
