Ceratizit
7.1001004E9

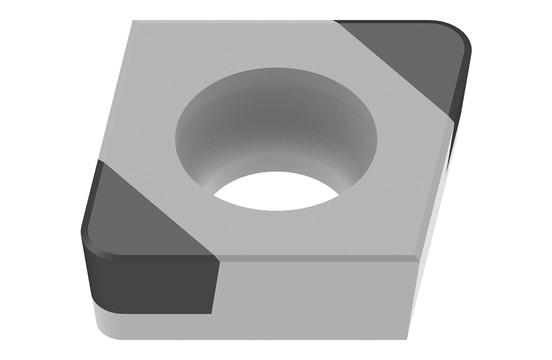

PCBN TURNING INSERT
Specifications
| Thickness (Metric) | 2.38 |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Material | PCBN |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCGW |
| Thickness (Inch) | 0.1 |
| Short Description | CCGW 060204EN_B3 CTBH15U |
| Long Description | PCBN TURNING INSERT CCGW 060204EN_B3 CTBH15U |
| Grade | CTBH15U |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.26 Inch |
| Inscribed Circle Diameter | 0.25 Inch |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Metric) | 6.4 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Screw Hole Diameter (Decimal) | 0.11 |
| Screw Hole Diameter (Metric) | 2.8 |
| Cutting Edge Effective Length (Metric) | 3.1 |
| Cutting Edge Effective Length (Decimal) | 0.13 |
| Index Count | 2.0 |
| Tolerance Class | G |
