Ceratizit
7.079321E7

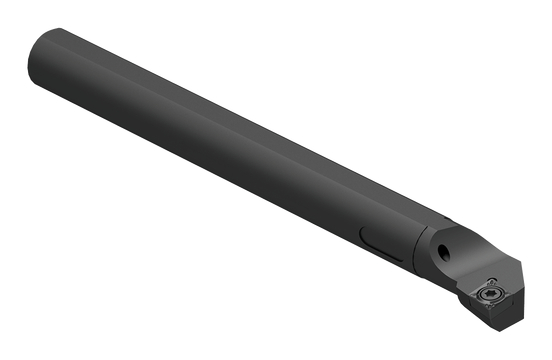

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCFCL |
| Overall Length (Inch) | 3.94 |
| Short Description | A10H SCFCL 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A10H SCFCL 06 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 9.50 mm |
| Orthogonal Rake Angle | 7 degrees |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10.0 |
| Functional Width (Decimal) | 0.28 |
| Functional Width (Metric) | 7.0 |
| Head Length (Decimal) | 0.38 |
| Head Length (Metric) | 9.6 |
| Min. Bore Diameter (Decimal) | 0.52 |
| Min. Bore Diameter (Metric) | 13.0 |
| End Chamfer Angle | 42 degrees |
| End Chamfer Distance (Decimal) | 0.36 |
| End Chamfer Distance (Metric) | 9.0 |
| Body Diameter Reduced (Decimal) | 0.39 |
| Body Diameter Reduced (Metric) | 9.7 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 19.0 |
| Reduced Body Diameter Length (Decimal) | 0.75 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCFC90 |
