Ceratizit
7.0792208E7

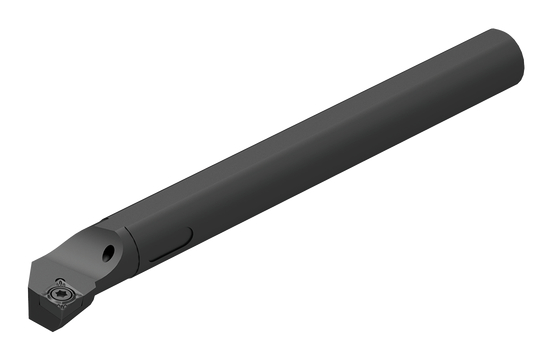

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 80.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCFCR |
| Overall Length (Inch) | 3.15 |
| Short Description | A08F SCFCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A08F SCFCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 7.60 mm |
| Orthogonal Rake Angle | 11 degrees |
| Connection Diameter (Decimal) | 0.32 |
| Connection Diameter (Metric) | 8.0 |
| Functional Width (Decimal) | 0.2 |
| Functional Width (Metric) | 5.0 |
| Head Length (Decimal) | 0.4 |
| Head Length (Metric) | 10.0 |
| Min. Bore Diameter (Decimal) | 0.44 |
| Min. Bore Diameter (Metric) | 11.0 |
| Body Diameter Reduced (Decimal) | 0.3 |
| Body Diameter Reduced (Metric) | 7.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 17.0 |
| Reduced Body Diameter Length (Decimal) | 0.67 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCFC90 |
