Ceratizit
7.0788112E9

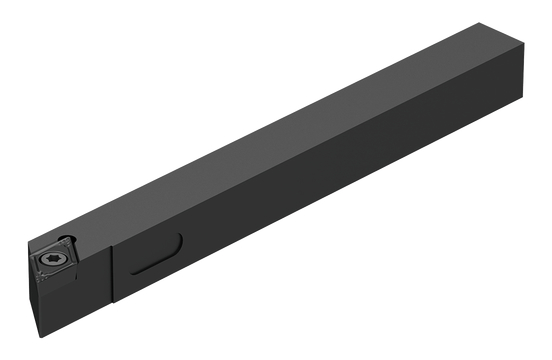

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDACR |
| Overall Length (Inch) | 5.91 |
| Short Description | SDACR 1212 M11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SDACR 1212 M11 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.48 Inch |
| Shank Width (Metric) | 12.0 |
| Shank Height (Metric) | 12.0 |
| Functional Width (Decimal) | 0.48 |
| Functional Width (Metric) | 12.0 |
| Head Length (Decimal) | 0.83 |
| Head Length (Metric) | 21.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 12.0 |
| Functional Height (Decimal) | 0.48 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDAC90 |
