Ceratizit
7.0782008E7

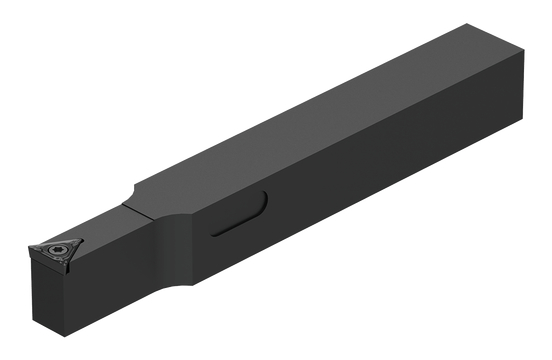

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STCCN |
| Overall Length (Inch) | 4.93 |
| Short Description | STCCN 0808 K09 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER STCCN 0808 K09 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 8 mm |
| Shank Height | 8 mm |
| Shank Width (Decimal) | 0.32 |
| Head Length (Decimal) | 0.44 |
| Head Length (Metric) | 11.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 8.0 |
| Functional Height (Decimal) | 0.32 |
| Overall Height (Metric) | 7.7 |
| Overall Height (Decimal) | 0.31 |
| Tightening Torque (Nm) | 1.0 |
| Holder Form | STCC90 |
