Ceratizit
7.076901E7

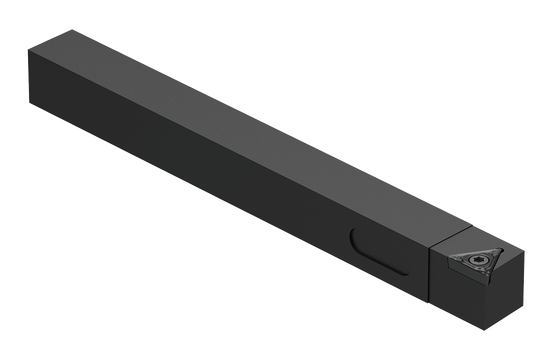

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | STACL |
| Overall Length (Inch) | 4.93 |
| Short Description | STACL 1010 K09 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER STACL 1010 K09 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 10 mm |
| Shank Height | 10 mm |
| Shank Width (Decimal) | 0.4 |
| Functional Width (Decimal) | 0.4 |
| Functional Width (Metric) | 10.0 |
| Head Length (Decimal) | 0.48 |
| Head Length (Metric) | 12.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 10.0 |
| Functional Height (Decimal) | 0.4 |
| Overall Height (Metric) | 9.7 |
| Overall Height (Decimal) | 0.39 |
| Tightening Torque (Nm) | 1.0 |
| Holder Form | STAC90 |
