Ceratizit
7.076102E9

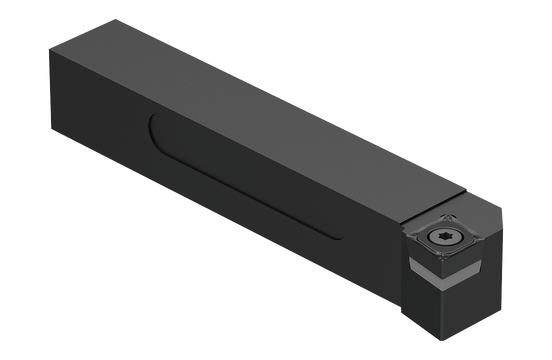

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCFCL |
| Overall Length (Inch) | 4.93 |
| Short Description | SCFCL 2020 K12 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SCFCL 2020 K12 |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 0.79 Inch |
| Shank Width (Metric) | 20.0 |
| Shank Height (Metric) | 20.0 |
| Functional Width (Decimal) | 0.99 |
| Functional Width (Metric) | 25.0 |
| Head Length (Decimal) | 0.67 |
| Head Length (Metric) | 17.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.24 |
| End Chamfer Distance (Metric) | 6.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 20.0 |
| Functional Height (Decimal) | 0.79 |
| Overall Height (Metric) | 19.5 |
| Overall Height (Decimal) | 0.77 |
| Tightening Torque (Nm) | 5.0 |
| Holder Form | SCFC90 |
