7.0760012E7

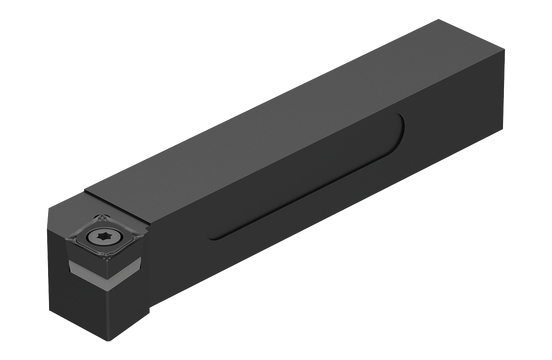

MAXILOCK S EXTERNAL TOOLHOLDER

Specifications

Overall Length (Metric)	80.0
Series	MaxiLock-S
Toolholder Style	SCFCR
Overall Length (Inch)	3.15
Short Description	SCFCR 1212 F09
Long Description	MAXILOCK S EXTERNAL TOOLHOLDER SCFCR 1212 F09
Direction Of Hand	Right
Unit Of Measure	Metric
Material	Steel
Shank Width	12 mm
Shank Height	12 mm
Shank Width (Decimal)	0.48
Functional Width (Decimal)	0.63
Functional Width (Metric)	16.0
Head Length (Decimal)	0.52
Head Length (Metric)	13.0
End Chamfer Angle	45 degrees
End Chamfer Distance (Decimal)	0.12
End Chamfer Distance (Metric)	3.0
Connection Type	VKT - Square
Functional Height (Metric)	12.0
Functional Height (Decimal)	0.48
Overall Height (Metric)	11.7
Overall Height (Decimal)	0.47
Tightening Torque (Nm)	3,2
Holder Form	SCFC90
