Ceratizit
7.0756114E7

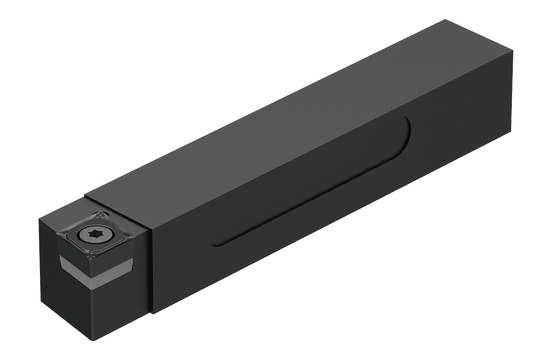

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCACR |
| Overall Length (Inch) | 5.91 |
| Short Description | SCACR 1414 M09 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SCACR 1414 M09 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 14 mm |
| Shank Height | 14 mm |
| Shank Width (Decimal) | 0.56 |
| Functional Width (Decimal) | 0.56 |
| Functional Width (Metric) | 14.0 |
| Head Length (Decimal) | 0.52 |
| Head Length (Metric) | 13.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 14.0 |
| Functional Height (Decimal) | 0.56 |
| Overall Height (Metric) | 14.0 |
| Overall Height (Decimal) | 0.56 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SCAC90 |
