Ceratizit
7.075201E7

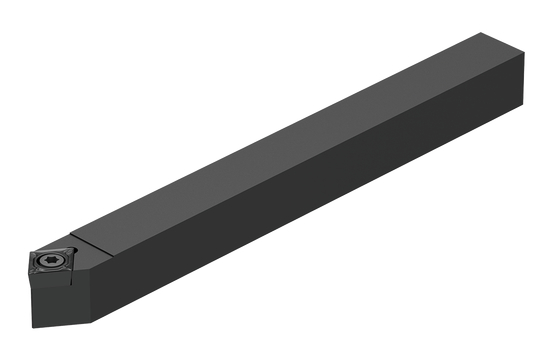

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCDCL |
| Overall Length (Inch) | 5.91 |
| Short Description | SCDCL 1010 M06 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SCDCL 1010 M06 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 10 mm |
| Shank Height | 10 mm |
| Shank Width (Decimal) | 0.4 |
| Functional Width (Decimal) | 0.2 |
| Functional Width (Metric) | 5.0 |
| Head Length (Decimal) | 0.52 |
| Head Length (Metric) | 13.0 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 10.0 |
| Functional Height (Decimal) | 0.4 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCDC45 |
