Ceratizit
7.074822E7

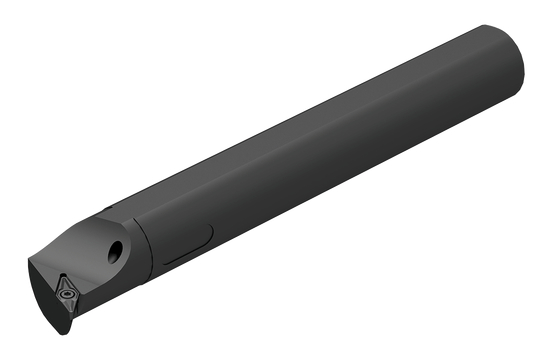

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 180.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVQCR |
| Overall Length (Inch) | 7.09 |
| Short Description | A20Q SVQCR 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A20Q SVQCR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 18.50 mm |
| Orthogonal Rake Angle | 4 degrees |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20.0 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13.0 |
| Head Length (Decimal) | 0.62 |
| Head Length (Metric) | 15.66 |
| Min. Bore Diameter (Decimal) | 0.99 |
| Min. Bore Diameter (Metric) | 25.0 |
| End Chamfer Angle | 72.60 degrees |
| End Chamfer Distance (Decimal) | 0.63 |
| End Chamfer Distance (Metric) | 16.0 |
| Body Diameter Reduced (Decimal) | 0.77 |
| Body Diameter Reduced (Metric) | 19.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 32.0 |
| Reduced Body Diameter Length (Decimal) | 1.26 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SVQC107,5 |
