Ceratizit
7.0744216E7

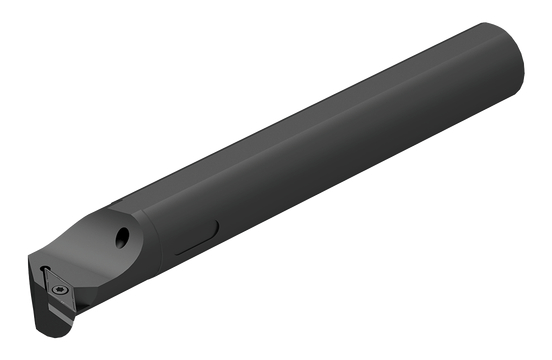

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVUCR |
| Overall Length (Inch) | 5.91 |
| Short Description | A16M SVUCR 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A16M SVUCR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 15 mm |
| Orthogonal Rake Angle | 5 degrees |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16.0 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11.0 |
| Head Length (Decimal) | 0.62 |
| Head Length (Metric) | 15.72 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20.0 |
| End Chamfer Angle | 51.91 degrees |
| End Chamfer Distance (Decimal) | 0.65 |
| End Chamfer Distance (Metric) | 16.38 |
| Body Diameter Reduced (Decimal) | 0.58 |
| Body Diameter Reduced (Metric) | 14.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 29.0 |
| Reduced Body Diameter Length (Decimal) | 1.15 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SVUC93 |
