Ceratizit
7.074121E7

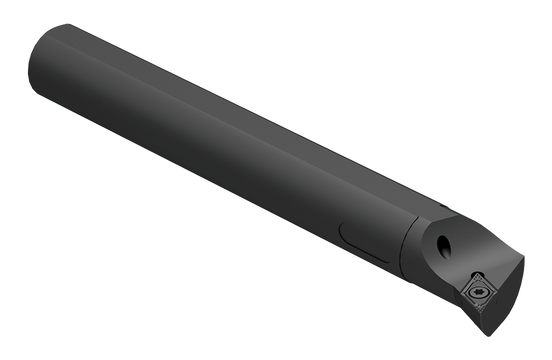

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDQCL |
| Overall Length (Inch) | 3.94 |
| Short Description | A10H SDQCL 07 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A10H SDQCL 07 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 9 mm |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10.0 |
| Functional Width (Decimal) | 0.28 |
| Functional Width (Metric) | 7.0 |
| Min. Bore Diameter (Decimal) | 0.5 |
| Min. Bore Diameter (Metric) | 12.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 22.0 |
| Reduced Body Diameter Length (Decimal) | 0.87 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SDQC107,5 |
