Ceratizit
7.0740232E7

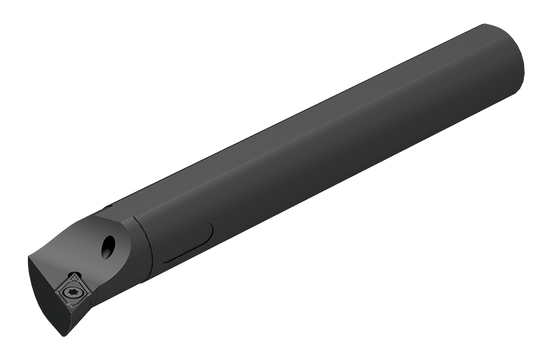

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDQCR |
| Overall Length (Inch) | 9.85 |
| Short Description | A32S SDQCR 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A32S SDQCR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 30 mm |
| Orthogonal Rake Angle | 4 degrees |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32.0 |
| Functional Width (Decimal) | 0.87 |
| Functional Width (Metric) | 22.0 |
| Head Length (Decimal) | 0.7 |
| Head Length (Metric) | 17.7 |
| Min. Bore Diameter (Decimal) | 1.58 |
| Min. Bore Diameter (Metric) | 40.0 |
| End Chamfer Angle | 72.50 degrees |
| End Chamfer Distance (Decimal) | 0.87 |
| End Chamfer Distance (Metric) | 22.0 |
| Body Diameter Reduced (Decimal) | 1.24 |
| Body Diameter Reduced (Metric) | 31.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 50.0 |
| Reduced Body Diameter Length (Decimal) | 1.97 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDQC107,5 |
