Ceratizit
7.0739016E7

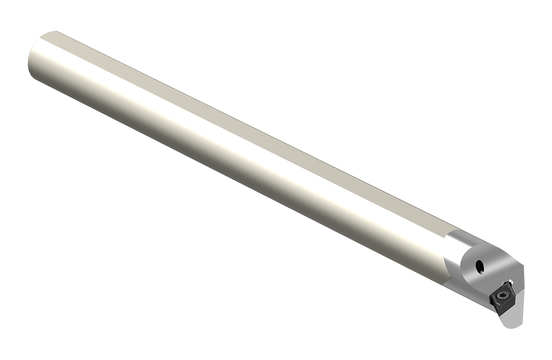

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 200.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDUCL |
| Overall Length (Inch) | 7.88 |
| Short Description | E16R SDUCL 07 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER E16R SDUCL 07 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | HM |
| Shank Height | 15 mm |
| Orthogonal Rake Angle | 4 degrees |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16.0 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11.0 |
| Head Length (Decimal) | 0.44 |
| Head Length (Metric) | 11.0 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20.0 |
| End Chamfer Angle | 58 degrees |
| End Chamfer Distance (Decimal) | 0.52 |
| End Chamfer Distance (Metric) | 13.1 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 34.0 |
| Reduced Body Diameter Length (Decimal) | 1.34 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SDUC93 |
