Ceratizit
7.0737125E7

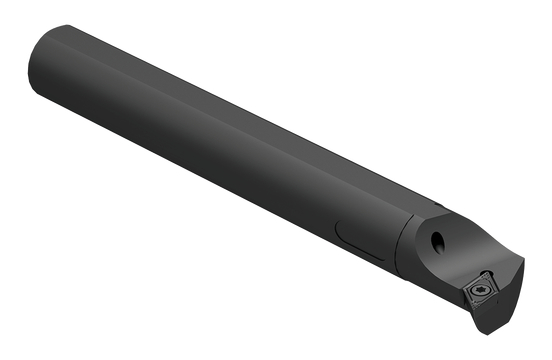

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 300.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDUCL |
| Overall Length (Inch) | 11.82 |
| Short Description | S25T SDUCL 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER S25T SDUCL 11 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 24 mm |
| Shank Height | 23 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Width (Decimal) | 0.95 |
| Connection Diameter (Decimal) | 0.99 |
| Connection Diameter (Metric) | 25.0 |
| Functional Width (Decimal) | 0.67 |
| Functional Width (Metric) | 17.0 |
| Head Length (Decimal) | 0.5 |
| Head Length (Metric) | 12.6 |
| Min. Bore Diameter (Decimal) | 1.26 |
| Min. Bore Diameter (Metric) | 32.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.69 |
| End Chamfer Distance (Metric) | 17.5 |
| Connection Type | CYL |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDUC93 |
