7.0736332E7

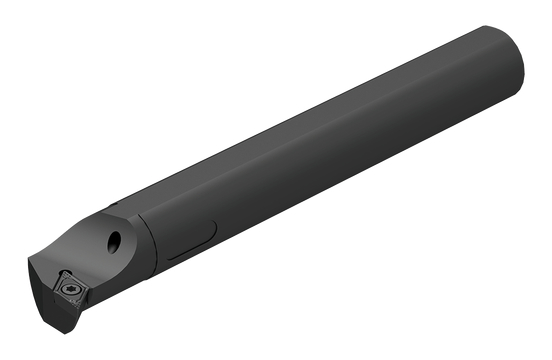

MAXILOCK S INTERNAL TOOLHOLDER

Specifications

Overall Length (Metric)	250.0
Series	MaxiLock-S
Toolholder Style	SDUCR
Overall Length (Inch)	9.85
Short Description	A32S SDUCR 11
Long Description	MAXILOCK S INTERNAL TOOLHOLDER A32S SDUCR 11
Direction Of Hand	Right
Unit Of Measure	Metric
Material	Steel
Shank Height	31 mm
Orthogonal Rake Angle	4 degrees
Connection Diameter (Decimal)	1.26
Connection Diameter (Metric)	32.0
Functional Width (Decimal)	0.87
Functional Width (Metric)	22.0
Head Length (Decimal)	0.96
Head Length (Metric)	24.2
Min. Bore Diameter (Decimal)	1.58
Min. Bore Diameter (Metric)	40.0
End Chamfer Angle	54.39 degrees
End Chamfer Distance (Decimal)	0.86
End Chamfer Distance (Metric)	21.7
Body Diameter Reduced (Decimal)	1.24
Body Diameter Reduced (Metric)	31.5
Connection Type	CYL
Functional Height (Metric)	15.75
Functional Height (Decimal)	0.62
Reduced Body Diameter Length (Metric)	50.0
Reduced Body Diameter Length (Decimal)	1.97
Tightening Torque (Nm)	3,2
Holder Form	SDUC93
