Ceratizit
7.073612E7

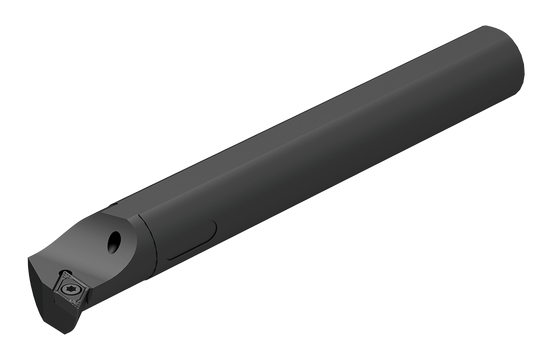

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDUCR |
| Overall Length (Inch) | 9.85 |
| Short Description | S20S SDUCR 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER S20S SDUCR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 19 mm |
| Shank Height | 18 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Width (Decimal) | 0.75 |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20.0 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13.0 |
| Head Length (Decimal) | 0.48 |
| Head Length (Metric) | 12.0 |
| Min. Bore Diameter (Decimal) | 0.99 |
| Min. Bore Diameter (Metric) | 25.0 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.63 |
| End Chamfer Distance (Metric) | 16.0 |
| Body Diameter Reduced (Decimal) | 0.77 |
| Body Diameter Reduced (Metric) | 19.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 20.0 |
| Reduced Body Diameter Length (Decimal) | 0.79 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDUC93 |
