Ceratizit
7.073222E7

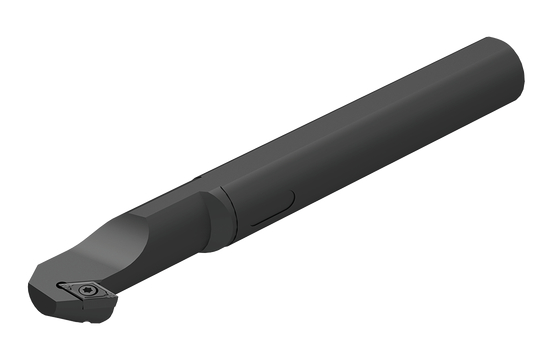

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 196.5 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDXCR |
| Overall Length (Inch) | 7.74 |
| Short Description | A20Q SDXCR 11 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A20Q SDXCR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 18.50 mm |
| Orthogonal Rake Angle | 6 degrees |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20.0 |
| Length of Cut (Decimal) | 0.26 |
| Length Of Cut (Metric) | 6.5 |
| Functional Length (Decimal) | 7.09 |
| Functional Length (Metric) | 180.0 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13.0 |
| Head Length (Decimal) | 0.63 |
| Head Length (Metric) | 16.0 |
| Min. Bore Diameter (Decimal) | 0.99 |
| Min. Bore Diameter (Metric) | 25.0 |
| Connection Type | CYL |
| Usable Length (Metric) | 40.0 |
| Usable Length (Decimal) | 1.58 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDXC93 |
