Ceratizit
7.0732212E7

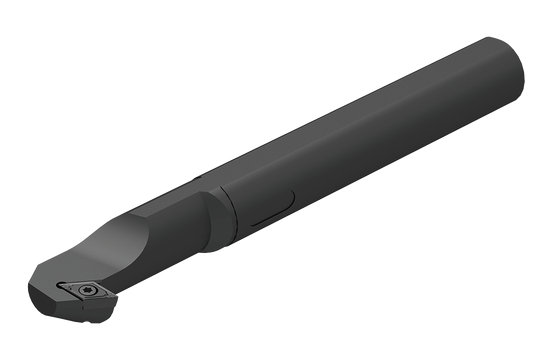

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 137.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDXCR |
| Overall Length (Inch) | 5.4 |
| Short Description | A12K SDXCR 07 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A12K SDXCR 07 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 11.50 mm |
| Orthogonal Rake Angle | 7 degrees |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12.0 |
| Length of Cut (Decimal) | 0.18 |
| Length Of Cut (Metric) | 4.5 |
| Functional Length (Decimal) | 4.93 |
| Functional Length (Metric) | 125.0 |
| Functional Width (Decimal) | 0.36 |
| Functional Width (Metric) | 9.0 |
| Head Length (Decimal) | 0.48 |
| Head Length (Metric) | 12.0 |
| Min. Bore Diameter (Decimal) | 0.63 |
| Min. Bore Diameter (Metric) | 16.0 |
| Connection Type | CYL |
| Usable Length (Metric) | 24.0 |
| Usable Length (Decimal) | 0.95 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SDXC93 |
