Ceratizit
7.0727225E7

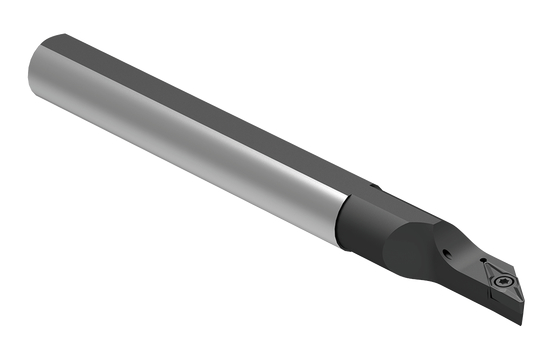

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150.0 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVJCL |
| Overall Length (Inch) | 5.91 |
| Short Description | A25M SVJCL 16 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A25M SVJCL 16 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Shank Height | 24 mm |
| Orthogonal Rake Angle | 5 degrees |
| Connection Diameter (Decimal) | 0.99 |
| Connection Diameter (Metric) | 25.0 |
| Functional Width (Decimal) | 0.2 |
| Functional Width (Metric) | 5.0 |
| Head Length (Decimal) | 1.22 |
| Head Length (Metric) | 31.0 |
| Min. Bore Diameter (Decimal) | 1.11 |
| Min. Bore Diameter (Metric) | 28.0 |
| Body Diameter Reduced (Decimal) | 0.95 |
| Body Diameter Reduced (Metric) | 24.0 |
| Connection Type | CYL |
| Body Length (Metric) | 40.0 |
| Reduced Body Diameter Length (Metric) | 58.0 |
| Reduced Body Diameter Length (Decimal) | 2.29 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SVJC93 |
